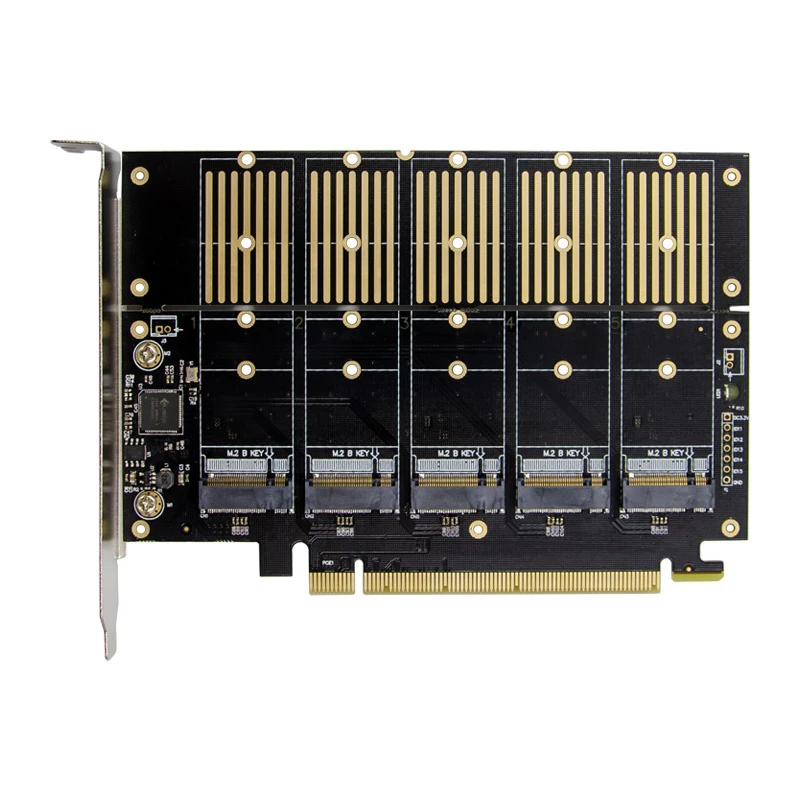

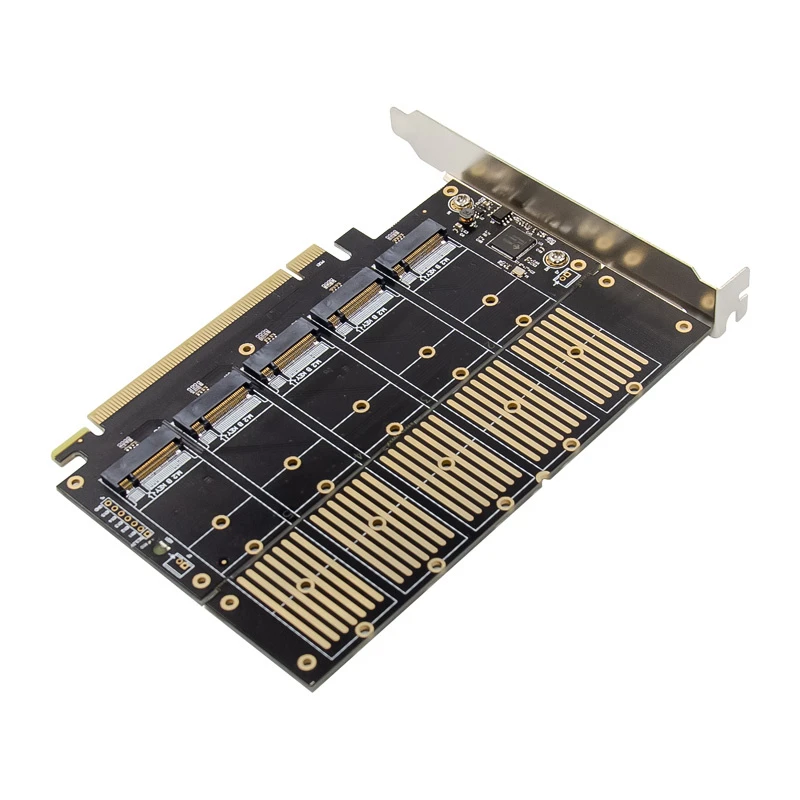

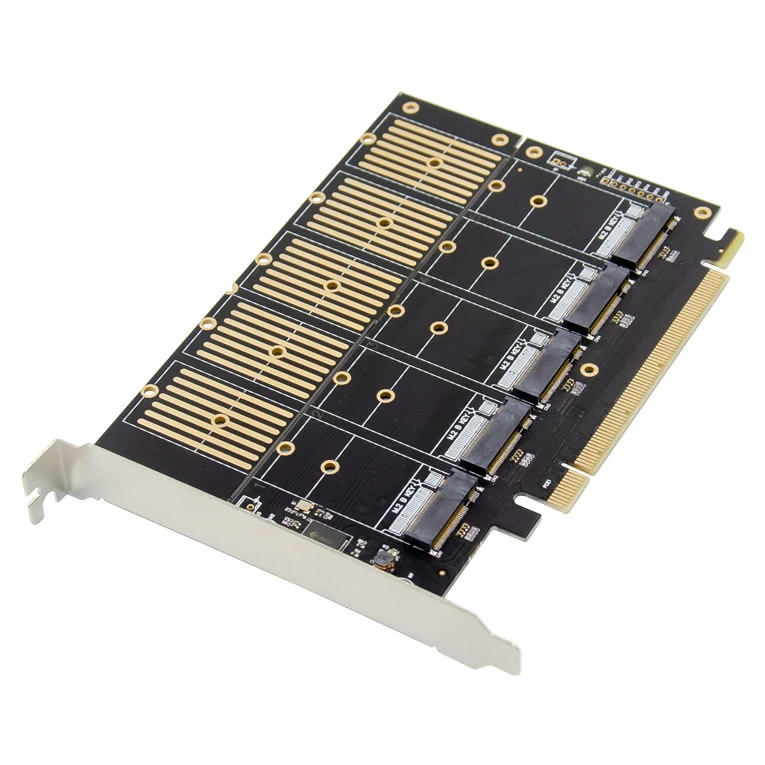

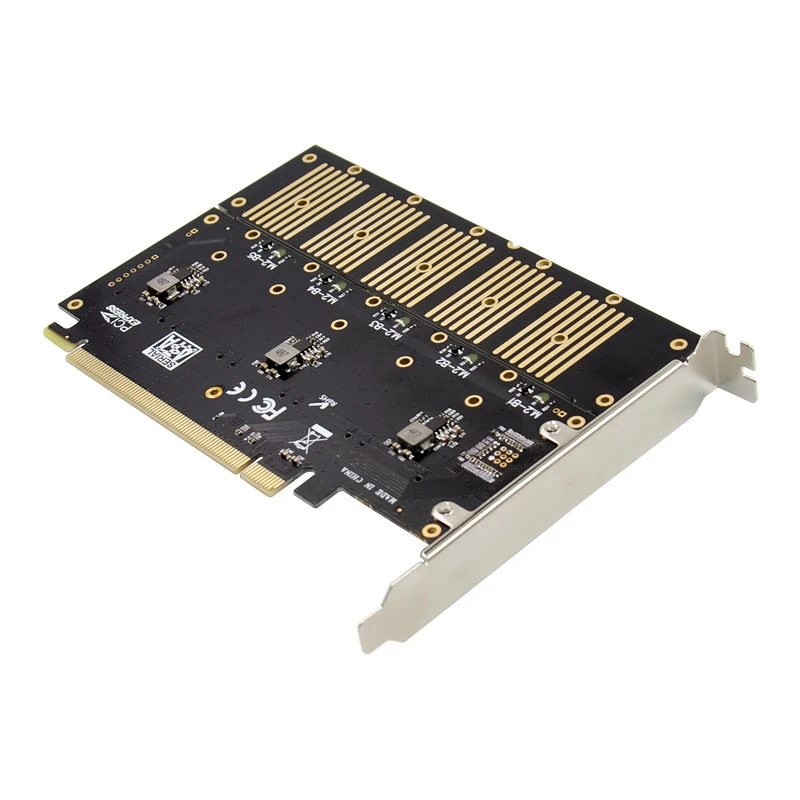

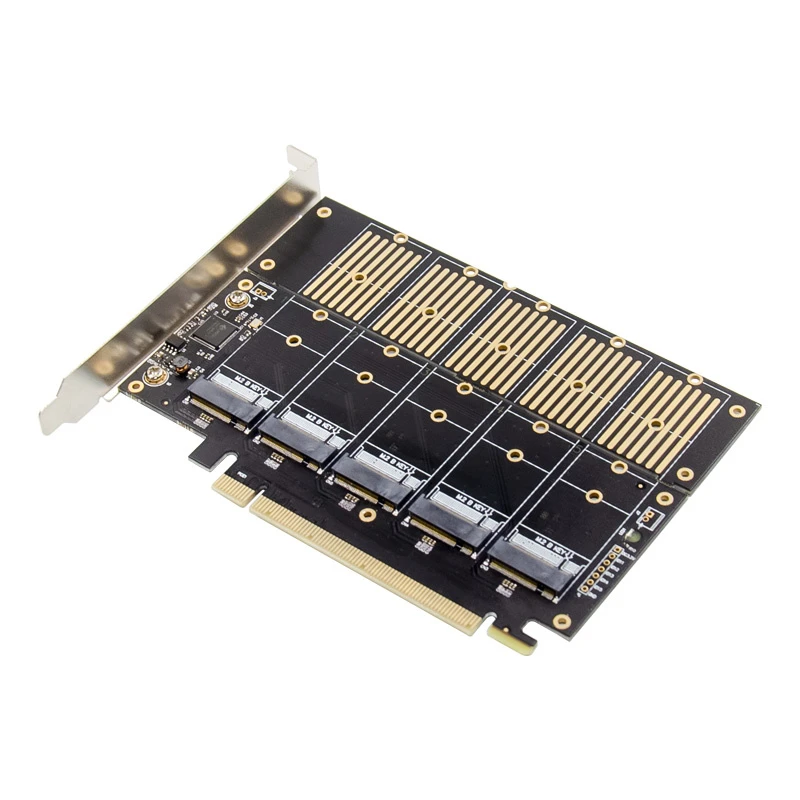

Cryo-PC 5-Port SATA M.2 B Key SSD PCIe Card

Product description

• Brand:Cryo-PC
• UPC:643361985601
• Article number:CPC-98560
• Availability:
  In stock (9)

The CPC-98560 5-Port M.2 Key B NGFF SSD Expansion card, used new JMB585 chip solution, high speed and stable performance, it is committed to solving user’s demand for massive data space. the high-speed expansion card achieves PCI Express Gen 3×2 line bandwidth, with five M.2 Key B SATA ports extending from the PC host to the PCI Express slot, each port with a transmission speed up to 6Gbps. it can be widely applied to personal computers and other big data storage devices.

FEATURES

▪Supports up to two lane of PCI Express

▪Complies with PCI Express Base Specification Revision 3.1a

▪PCI Express interface:X16

▪Supports PCIe Link layer power saving mode

▪Supports 5 M.2 Key B Port

▪Each M.2 Key B Port transmit speeds up to 6Gbps

▪For the SSD type M.2 “B + M Key” or “B Key”

▪Complies with M.2 Key B SSD Size :2230,2242,2260,2280

▪Support command-based and FIS-based of Port Multiplier

▪Complies with SATA Specification Revision 3.2

▪Supports AHCI mode and IDE programming interface

▪Supports Native Command Queue(NCQ)

▪Supports SATA Link Power saving mode(partial and slumber)

▪Supports SATA plug-in detection capable

▪Supports drive power control and staggered spin-up

▪Supports SATA Partial/Slumber power management state

▪Plug-and-Play Supported, no additional software installation or settings required

▪Supports Low profile bracket

▪Chipset: JMB585
